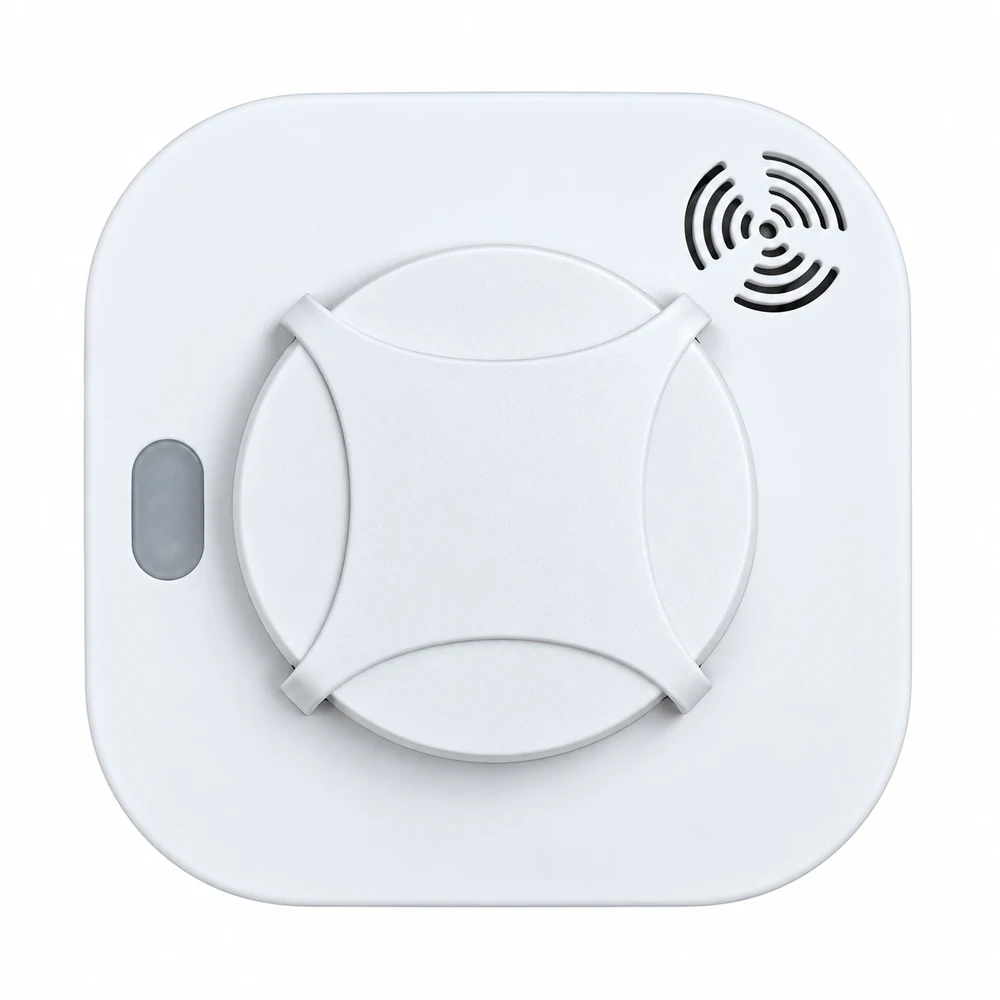

ANWETECH AT-S235 LoRaWAN Wireless Smoke Detector
ANWETECH

AT-S235 LoRaWAN Wireless Smoke Detector

Wireless fire detection, made easier.

The ANWETECH AT-S235 is a battery-powered LoRaWAN® photoelectric smoke detector for wireless fire monitoring in indoor spaces. It pairs a local audible-and-visual alarm with LoRaWAN wireless reporting, sending smoke, high-temperature, and low-battery events through a compatible gateway to a network server or monitoring platform. Because no signal or power wiring is required, it is well suited to retrofit projects, existing buildings, and distributed sites where conventional cabling is difficult or undesirable. INDUS-MEDICA supplies and installs the AT-S235 as part of our fire protection solutions.

  • Photoelectric Sensing
  • LoRaWAN® 1.0.3
  • No Signal Wiring
  • 3-Year Battery
Request a Quote Contact Us
Features

Why Go Wireless

  • Wireless LoRaWAN

    Sends alarm and device-status data to a compatible gateway.

  • Photoelectric Sensing

    Early detection of smoke from developing fire conditions.

  • Local + Remote Alarm

    Built-in LED and ≥80 dB buzzer, plus remote reporting.

  • No Signal Wiring

    Ideal for retrofits and existing buildings.

  • High-Temperature Alarm

    Reports when the temperature threshold is exceeded.

  • Low-Battery Monitoring

    Automatic low-voltage warning for preventive maintenance.

  • 3-Year Battery Life

    One CR17450 battery with low-power operation.

  • Self-Test & Silence

    One-button routine testing and temporary alarm silence.

How It Works

Detect Locally, Monitor Remotely

The AT-S235 connects smoke detection to your LoRaWAN network — from the detector to the gateway to platform visibility.

  • 1

    Detect

    The AT-S235 senses smoke, high temperature, or low battery and sounds a local alarm.

  • 2

    Transmit

    The event is sent over LoRaWAN wireless to a compatible gateway.

  • 3

    Cloud / Server

    The gateway forwards the data to a network server or cloud platform.

  • 4

    Monitor

    View live status and alarms on a PC web portal or mobile app.

Wired vs Wireless

Traditional Wired or LoRaWAN?

A flexible option for modern fire detection projects, especially where cabling is difficult.

AspectTraditional WiredANWETECH LoRaWAN
CablingExtensive signal cabling requiredNo signal wiring (wireless)
InstallationFixed and complex, hard to relocateFlexible, fast, retrofit-friendly
ExpansionNew detectors need new cablingAdd devices wirelessly
Remote MonitoringUsually on-site connection onlyRemote monitoring via LoRaWAN
DeploymentLonger, higher installation costFaster, lower deployment effort
Specifications

Technical Specifications

ModelAT-S235
TypeLoRaWAN® wireless photoelectric smoke detector
Detection PrinciplePhotoelectric smoke detection
Local Alarm1 × red LED + integrated buzzer, ≥80 dB at 3 m; alarm delay <12 s
Effective Range60 m³ (subject to local fire-alarm design)
CommunicationLoRaWAN® 1.0.3, OTAA Class A
FrequencyEU868 standard; CN470 / IN865 / US915 / AU915 / AS923 optional
RadioTX power 14 dBm (up to 22 dBm); RX sensitivity −125 dBm @ SF12
Wireless RangeUp to ~3 km in open environment (verify on site)
Alarm FunctionsSmoke / high-temperature / low-battery
Power Supply1 × CR17450 battery, 2400 mAh
Battery Life>3 years at 3 reports/day (laboratory conditions)
Operating Temperature−10°C to +50°C
Operating Humidity≤90% RH, non-condensing
Dimensions102 × 102 × 51 mm
InstallationScrew-fixed ceiling, indoor

Detector quantity and spacing must follow the applicable local fire-alarm design requirements; LoRaWAN coverage should be verified on site during commissioning.

Where It Fits

Applications

One detector, many environments — flexible LoRaWAN fire detection across distributed sites.

  • Offices
  • Apartments & Dorms
  • Hotels
  • Schools
  • Retail Shops
  • Warehouses
  • Retrofit Projects
  • Remote Facilities
