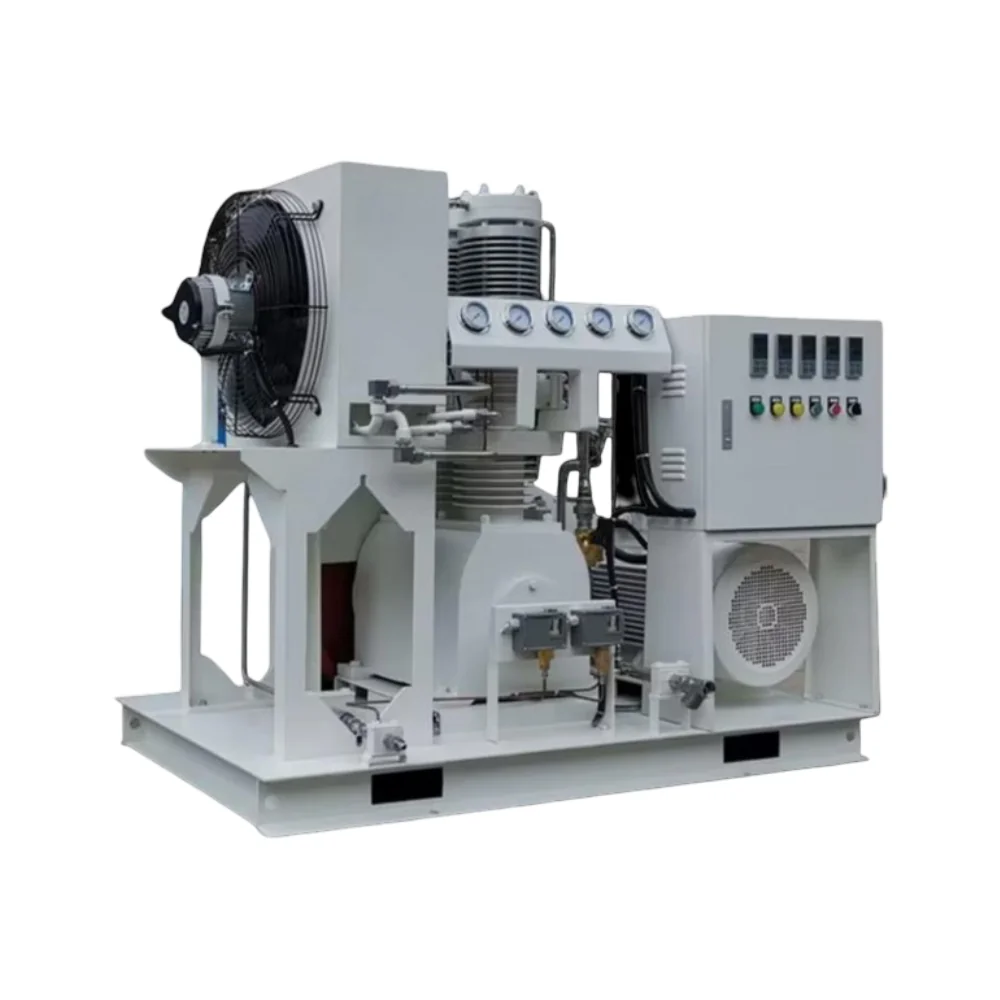

Valmig O2B Oxygen Filling Booster

Fill oxygen cylinders on-site.

The Valmig O2B is a 100% oil-free piston booster that compresses oxygen from a generator or supply line into high-pressure cylinders on site, extending a hospital’s autonomy by filling backup and patient-transport cylinders with no reliance on outside deliveries. Built entirely from oxygen-compatible materials in 3- and 4-stage configurations, it delivers filling capacities from 5 to 100 m³/h at 150, 200, or 300 bar, with heavy-duty air ventilation for 24/7 operation. An automated control panel sets inlet and filling pressure, monitors temperature at each stage with limit alarms, and raises maintenance alerts, while stainless steel pipework, a calibrated safety relief valve on every stage, and an optional manifold for filling up to 50 cylinders keep operation safe and simple.

100% Oil-Free
3 & 4 Stage
Up to 100 m³/h
150 / 200 / 300 BAR

Request a Quote Contact Us

Features

Independent Cylinder Filling

100% Oil-Free Piston

Oxygen-compatible booster with no oil in the gas path.
High-Pressure Filling

Fills cylinders at 150, 200, or 300 bar.
24/7 Operation

Heavy-duty air ventilation for continuous duty.
Automated Control Panel

Inlet and filling pressure set automatically.
Per-Stage Monitoring

Temperature limit alarms on every stage.
Stainless Steel Build

SS pipeline and valves with safety relief per stage.
Filling Manifold Option

Fill up to 50 cylinders in 2-cylinder increments.
Easy Maintenance

Maintenance alarm and simple, accessible servicing.

Specifications

Technical Specifications

Type	100% oil-free piston booster
Materials	Oxygen-compatible throughout
Stages	3- and 4-stage configurations
Filling Capacity	5 to 100 m³/h
Max Filling Pressure	150, 200, or 300 bar
Duty	Heavy-duty air ventilation for 24/7 operation
Control Panel	Automated – inlet & filling pressure set, per-stage temperature limit alarms, maintenance alarm, and multiple filling-pressure presets
Air Inlet	Inlet filter
Pipework & Valves	Stainless steel
Safety	Calibrated safety relief valve on each stage
Cylinder Filling Manifold	Optional – fills 2 up to 50 cylinders

Model Range

Configurations

Ten standard O2B configurations across 3- and 4-stage builds. Each is available with a 150, 200, or 300 bar maximum filling pressure.

Configuration	PowerHP	StagesPiston	Flow Ratem³/h
O2B-5/3	5	3 Stage	5
O2B-10/3	10	3 Stage	10
O2B-15/3	15	3 Stage	15
O2B-5/4	5	4 Stage	5
O2B-10/4	10	4 Stage	10
O2B-15/4	15	4 Stage	15
O2B-20/4	20	4 Stage	20
O2B-30/4	30	4 Stage	30
O2B-50/4	50	4 Stage	50
O2B-100/4	100	4 Stage	100

Flow rate is filling capacity at maximum pressure. Specifications are indicative and may vary with site conditions.

Configure

Part Number Configurator

Each O2B is specified with a structured part number. Choose one option from each segment; the worked example below shows how a full configuration reads.

Segment	Options
Series	O2B
Power / Stages	5/3, 10/3, 15/3 (3-stage); 5/4, 10/4, 15/4, 20/4, 30/4, 50/4, 100/4 (4-stage)
Flow Rate	5, 10, 15, 20, 30, 50, 100 m³/h (matched to power)
Max Filling Pressure	150, 200, 300 bar
Cylinder Filling Positions	2P, 4P, 10P, 20P, 30P, 40P, 50P
Voltage	220T, 380T, 415T, 440T (all 3-phase)
Frequency	50 Hz, 60 Hz

O2B-10/3-200-4-220T-60HZ

Example decoded	Meaning
Series	Oxygen Cylinder Filling Booster (O2B)
Power	10 HP
Stages	3-piston
Flow Capacity	10 m³/h at maximum pressure
Max Filling Pressure	200 bar
Cylinder Filling Positions	4
Voltage	220 V, 3-phase (220T)
Frequency	60 Hz
