Valmig O-GEN Medical Oxygen Generator
Valmig

Valmig O-GEN Medical Oxygen Generator

On-site medical oxygen, generated on demand.

The Valmig O-GEN produces medical-grade oxygen right at your facility using Pressure Swing Adsorption (PSA), drawing from compressed air to deliver a continuous 93–96% oxygen supply with no reliance on cylinder deliveries. A Valmig Smart Cycle controller pairs with variable-speed air compressors to hold energy use near 0.7 kWh/m³, while a zirconia-oxide or paramagnetic analyzer with dew point, CO, and CO² sensors continuously verifies gas quality and cuts supply automatically on a purity failure. Built-in telemetry allows remote monitoring and preventive maintenance, and the modular design scales from 6 to 54.5 m³/h across seven standard models for hospitals of any size.

  • PSA Technology
  • 93–96% Purity
  • Up to 54.5 m³/h
  • Remote Telemetry
Request a Quote Contact Us
Features

Reliable Oxygen, Full Autonomy

  • PSA Technology

    Pressure Swing Adsorption generates oxygen from ambient air.

  • Smart Cycle Efficiency

    Variable-speed control holds energy use near 0.7 kWh/m³.

  • Continuous Gas Analysis

    O₂ analyzer with dew point, CO, and CO² sensors.

  • Remote Telemetry

    Monitor performance and service the plant from anywhere.

  • Purity Protection

    Automatic system isolates supply if purity drops below spec.

  • 304 Stainless Build

    SS piping and pneumatic valves rated for 1,000,000 cycles.

  • Flexible Assembly

    IP55 container, stack-mount skid, or in-room installation.

  • Touchscreen Control

    Valmig controller, 4.3″ touch screen, Ethernet Modbus.

How It Works

System Flowchart

The O-GEN draws compressed, purified air and separates oxygen on site — supplying it straight to the hospital pipeline, or filling cylinders through an optional booster and manifold.

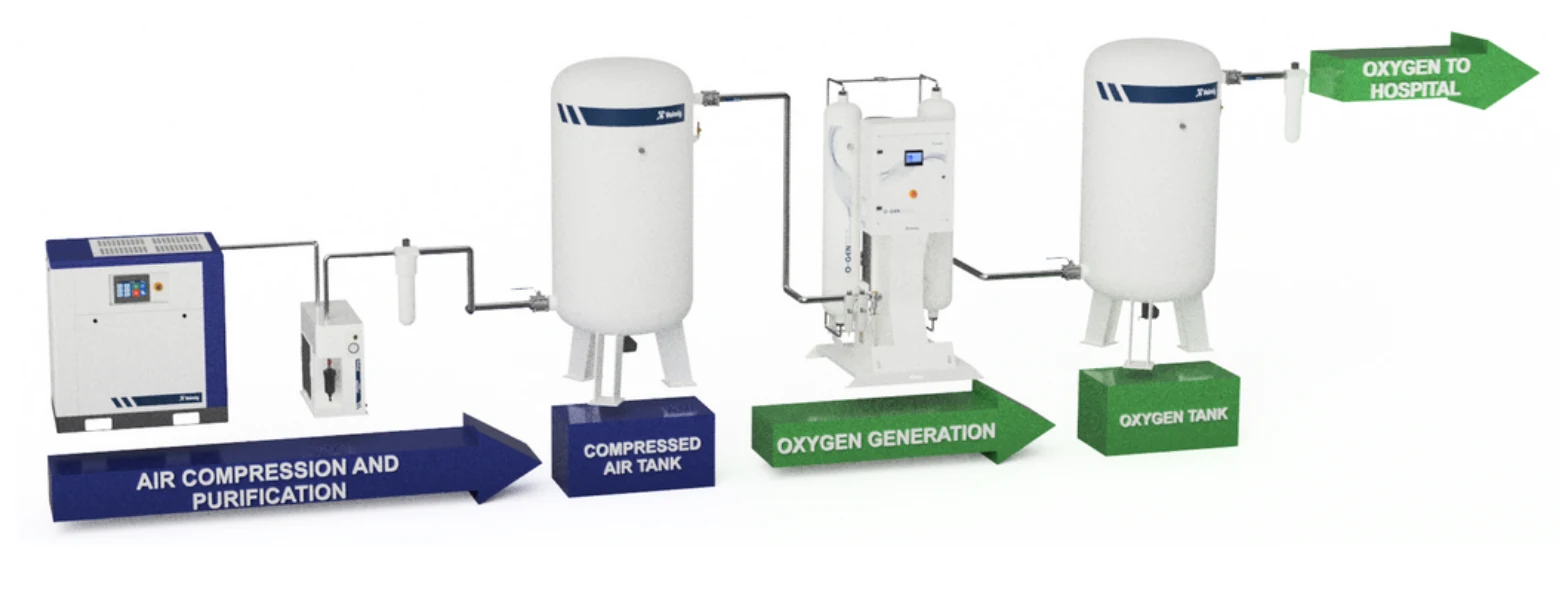

  • Standard Supply

    Air compression and purification → compressed air tank → oxygen generation → oxygen tank → oxygen to the hospital pipeline.

    O-GEN standard supply flow: air compression and purification, compressed air tank, oxygen generation, oxygen tank, then oxygen to hospital

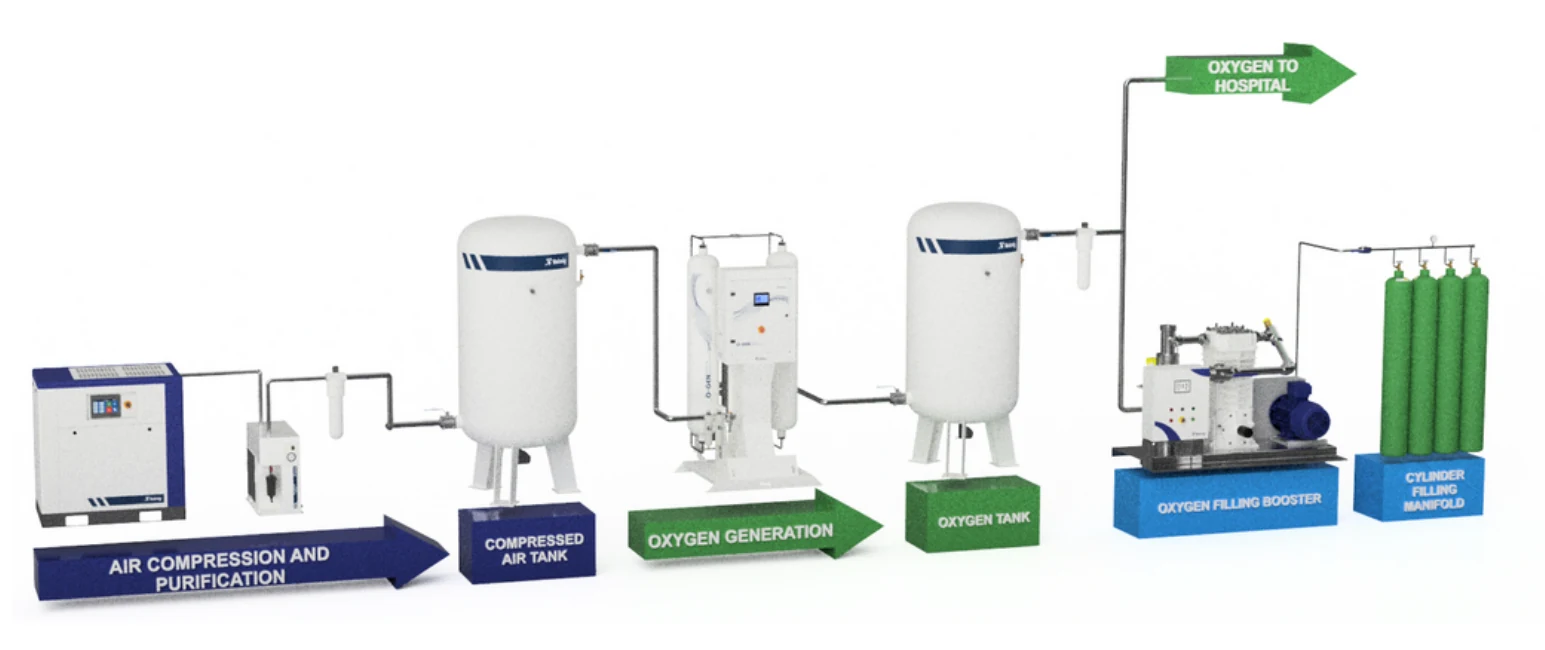

  • With Cylinder Filling

    The same supply chain, extended with an oxygen filling booster and cylinder filling manifold to fill backup and transport cylinders on site.

    O-GEN cylinder-filling flow: adds an oxygen filling booster and cylinder filling manifold after the oxygen tank
Specifications

Technical Specifications

TechnologyPSA – Pressure Swing Adsorption
Control SystemValmig controller with Smart Cycle
Display4.3″ touch screen (7″ & 10″ optional)
Oxygen AnalyzerZirconia oxide or paramagnetic
SensorsDew point, CO, CO², mass flow meter
CommunicationEthernet Modbus / telemetry
Oxygen Purity93–96%, with automatic protection on purity failure
Flow Rate5 to 54.5 m³/h (modular systems for higher flow rates)
ValvesStainless steel angle pneumatic, rated for 1,000,000 cycles
Piping304 stainless steel
Air Inlet FiltrationCoalescing filters (0.01 micron) + activated carbon filter
Air InletPressure regulator
Model Range

Standard Models

Seven standard O-GEN models at 93–96% O₂ purity, each paired with a recommended Valmig compressor. For higher flow rates, modular systems can be combined.

Model O₂ FlowNm³/h O₂ FlowN l/min Air ConsumptionNm³/h @ 8 bar RecommendedCompressor Reservoir Air / O₂Liters
OGEN-56.0100.067.5VLS-10-VSD300 / 300
OGEN-1012.5209.1141.1VLS-20-VSD300 / 300
OGEN-2020.7345.5233.2VLS-30-VSD500 / 500
OGEN-3030.4472.7319.1VLS-40-VSD500 / 500
OGEN-3535.5590.9398.9VLS-50-VSD1000 / 1000
OGEN-4040.9681.8460.2VLS-60-VSD1000 / 2×1000
OGEN-5054.5909.1613.6VLS-75-VSD1000 / 2×1000

O₂ flow measured at 6 bar. Air consumption measured at 8 bar. Specifications are indicative and may vary with site conditions.

Installation

Assembly Styles

The O-GEN can be delivered in three assembly styles to suit your site and installation preference.

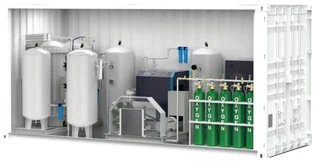

  • O-GEN oxygen generator assembled inside an IP55 container
    CTN – Container

    IP55 Container

    Assembled in a closed, IP55-certified container. Recommended when there is no dedicated location for the generator — it eases installation while protecting the equipment from the weather and reducing noise.

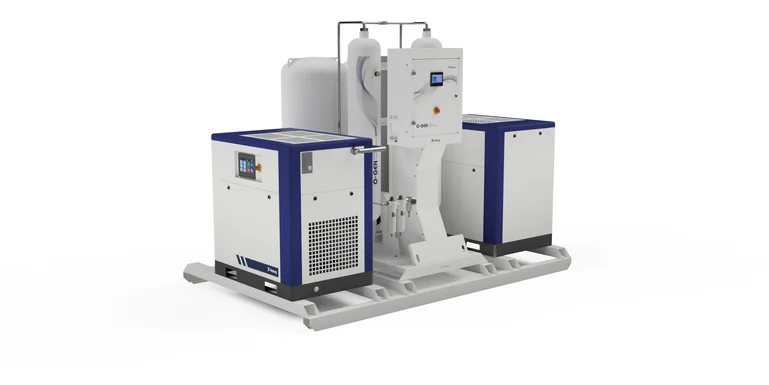

  • O-GEN oxygen generator on a modular stack-mount metal skid
    SM / SMC – Stack Mount

    Modular Skid

    Assembled on a modular metal base (SM), with an optional noise enclosure (SMC). Recommended when a room already exists and the ease of a plug-and-play install is preferred.

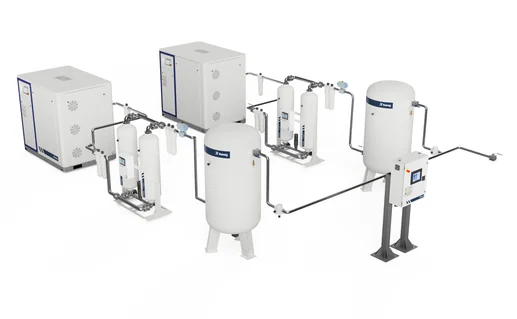

  • O-GEN oxygen generator components installed in a room
    RA – Room Assembly

    In-Room Install

    For facilities with a room designed for the generator. All components are pre-assembled at Valmig to ease installation; this type may require a specific design and the inclusion of exhaust systems.

Configure

Part Number Configurator

Each O-GEN is specified with a structured part number. Choose one option from each segment; the worked example below shows how a full configuration reads.

SegmentOptions
SeriesOGEN
TechnologyPSA, VSA, VPSA
Flow Rate5, 10, 20, 30, 35, 40, 50, 75, 100 m³/h
Configuration1 Simplex, 2 Duplex, 3 Triplex, 4 Quadplex, 5 Pentaplex
Power10, 20, 30, 40, 50, 60, 75, 100 HP
Compressor Configuration1 Simplex, 2 Duplex, 3 Triplex, 4 Quadplex
Compressor TypeSTD.OF Oil-free screw, STD.LB Lubricated screw, SCR.OF Oil-free scroll
Air Tank250, 350, 500, 1000, 2000 L
Oxygen Tank250, 350, 500, 1000, 2000 L
Assembly StyleSM Stack Mount, SMC Enclosed Stack Mount, RA Room Assembly, CTN Container IP55
Control PanelB Basic (analog), P Premium (7″ touch screen)
Voltage220T, 380T, 415T, 440T (all 3-phase)
Frequency50 Hz, 60 Hz
StandardNBR (NBR 13.587), NFPA (NFPA 99)
OptionalsIOT Telemetry Modem 4G, VSD Variable Speed Driver, O2P Paramagnetic O² Analyzer, FMD Digital Mass Flowmeter, FMA Analog Flowmeter, QCV Quality Control Valve, IDP Inlet Dew Point Sensor, ODP Outlet Dew Point Sensor, CO CO 0–5 ppm Sensor, CO2 CO² 0–500 ppm Sensor, BAC Bacteriological SS Outlet Filter, TCV Activated Carbon Tower, WOS Water separator

OGEN-PSA-10-1-20HP2-STD.LB-350L-350L-SM-P-220T-60Hz-NFPA-VSD-FMD-QCV-BAC

Example decodedMeaning
SeriesMedical Oxygen Generator (OGEN)
TechnologyPSA – Pressure Swing Adsorption
Flow Rate12.5 m³/h @ 6–7 bar, 93–96% purity
Compressor Power20 HP (each)
Compressor ConfigurationDuplex
Compressor TypeLubricated screw (STD.LB)
Air Tank350 L
Oxygen Tank350 L
Assembly StyleStack mount, open metal skid (SM)
Control PanelPremium, 7″ touch screen (P)
Voltage220 V, 3-phase (220T)
Frequency60 Hz
StandardNFPA 99
OptionsVSD variable-speed compressor, FMD digital mass flowmeter, QCV quality control valve, BAC bacteriological SS sterile filter
